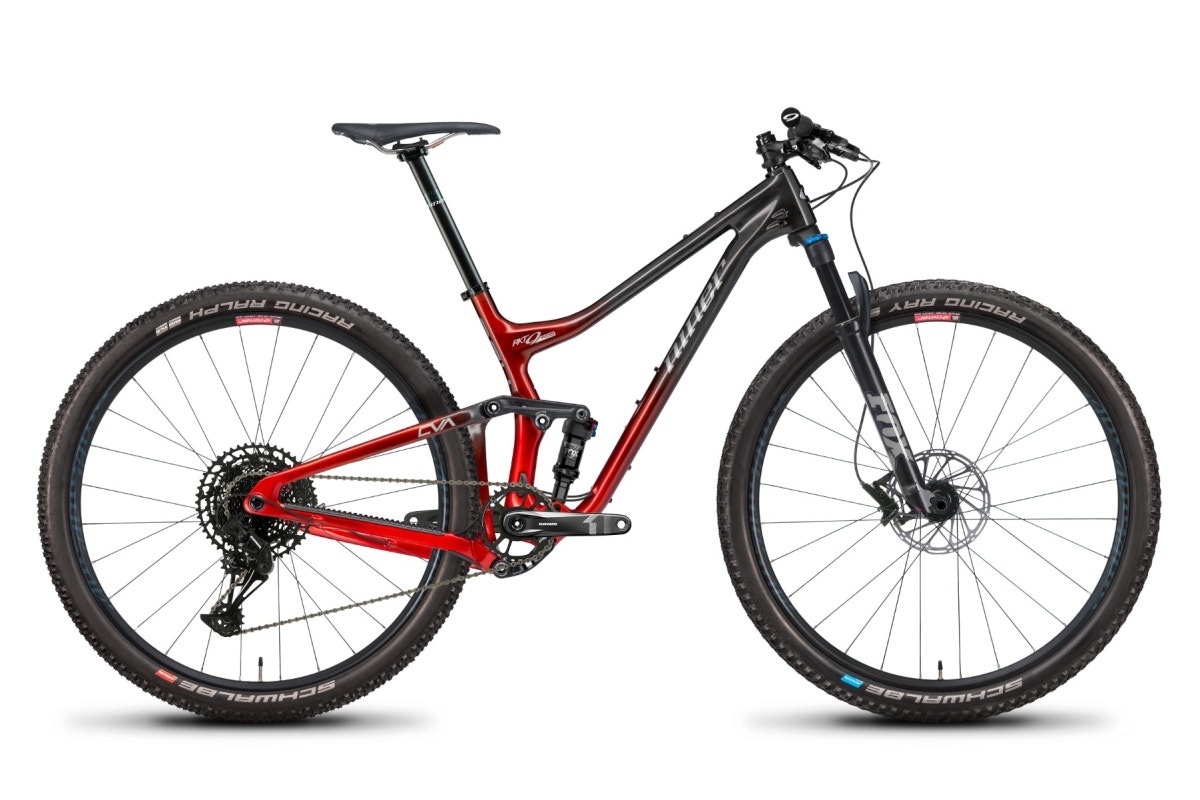

RKT 9 RDO - 2-STAR SRAM SX EAGLE

Rocket Powered - With 100mm CVA suspension and contemporary, modern geometry, this is our featherweight, cross-country race-ready launch vehicle.

Ready for liftoff

Race-ready yet trail-capable, this RKT is ready for launch

Niner Bikes has always been about maximizing the speed, efficiency, and precision that 29-inch wheels offer. Now ready for liftoff, this all-new launch vehicle is our line-leading cross-country full suspension bike. Updated with Niner’s patented 100mm CVA suspension system, remote front and rear lockouts, and contemporary race-ready geometry, the newest iteration of our RKT 9 RDO packs efficient pedaling prowess and corner carving capability into a World Cup worthy package.

Chasing the Record Known Time

Designing the RKT 9 RDO, our product team deliberately focused first on race features. The frame is light and stiff, thanks to Niner’s RDO carbon fiber construction. The frame is made with a no-frills focus for fast flights into orbit. The geometry is aggressive and agile, for quick course corrections at escape velocity speeds. And the suspension travel is short and efficient, with handlebar remote lockout for instant, extra rocket booster power if needed.

Yet, we all know that not all space missions are made in the name of science. For those riders who focus instead on fun laps into low-earth orbit, the updated RKT 9 RDO is built for versatility and a playful, trail-friendly attitude.

Responding to many riders’ requests for capability in the face of any feature, and also accommodating the technical demands of modern cross-country racecourses, a geometry flip chip allows for more relaxed frame angles. Clearance to fit wide, 2.5” tires and a 120mm suspension fork expands the universe of possibilities. The seat tube fits a dropper post, and the long, low-slung frame is made for stability at atmospheric reentry speed.

Racing to the edge of the universe

The RKT 9 RDO is a race bike, first and foremost. Blasting off from the start line, 100mm CVA suspension is made to send every ounce of thrust directly to the rear wheel. And remote front and rear suspension lockouts can be deployed for even more efficiency as needed. Achieving escape velocity has never been easier.

In-flight vector adjustments are easy, thanks to the aggressive, agile frame geometry. A 68-degree head tube angle keeps the sharp end tracking accurately and the 75-degree seat tube angle keeps the pilot positioned optimally for maximum power.

Of course, the RKT 9 RDO is built from Niner’s own Race Day Optimized (RDO) carbon fiber. With careful application of the fiber layers and internal molds to maximize compaction of the carbon and resin matrix, Niner RDO frames are light, stiff and strong. They also exhibit comfortable ride characteristics in the face of burning, lactic acid race efforts and supersonic reentry turbulence alike.

A launch vehicle is only as good as the payload it can carry. With that in mind, we included two full size water bottle mounts in the main triangle. There are also threaded accessory mounts on the top tube for extra fuel, mission-critical cargo, supplemental oxygen, or a repair kit.

“Trail Country” Capability

Not everyone is afflicted by uncontrollable lust for lofty podium landings. Some of us just want to blast up to the mesosphere then point it earthward and let gravity take over. When you’re partying the whole way down, a fun fuselage makes all the difference. Most of us Ninerds are nothing if not FUN.

The RKT 9 RDO was designed with features to keep jorts-wearing thrill seekers equally as happy as our slender, spandex-wrapped racers. This bike sports “trail-country” features like clearance for 2.5-inch tires, a flip chip to slack out the geometry by a half degree, and a short, straight seat tube that’s well-suited for a dropper post.

CVA suspension tuning is made for efficient pedaling, but not at the cost of downhill performance. The trunnion mount shock aids lateral stiffness and keeps the suspension articulation smooth and supple off the top. The frame is even made to accept a 120mm suspension fork for riders wanting high-speed hijinks during planetary reentry.

If flannel and denim is your uniform, and your racing goals are focused on fun first rather than finishing first, this RKT 9 RDO is a launch vehicle you can love.

Race ready geometry

Agile, 68-degree head tube angle and forward, 75-degree seat tube angle, with flip chip adjustment built in.

Enduro MAX Black black oxide pivot bearings

We use the smoothest, most durable pivot bearings in the industry. Made by Enduro, they’re built for life. Read More

Tire clearance

Fit tires up to 29x2.5” for any racecourse and all trail conditions

Lifetime warranty

Ride, race, rally. We have you covered with warranty service, small parts, and a support team that actually answers the phone. Read More

RDO carbon fiber

Niner’s premium Race Day Optimized carbon fiber means more strength, higher stiffness, and less weight.Read More

Full sleeve internal routing

Clean internal cable routing for all controls including a dropper post.

"Niner makes plenty of bikes for climbing mountains, but as far as XC bikes go, the RKT is meant for climbing podiums"

"Niner is making a statement with the RKT that the 29er is still the best platform for building a fast, lightweight, and racy mountain bike.”

"The marriage of speed and stability is courtesy of some smart geometry decisions Niner employed while designing this dedicated XC bike."

More Information
Available Frame SizesXS, SM, MD, LG, XL
Available ColorsGloss Carbon/ Silver; Hot Tamale/Gloss Carbon
FrameNINER RDO CARBON FIBER, 100MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS
ForkFOX 34 SC FLOAT FACTORY EVOL FIT4, 2 POSITION REMOTE L/O, KASHIMA COAT, 120MM, 110X15MM, 44MM OFFSET
ShockFOX FLOAT DPS FACTORY EVOL, 2 POSITION REMOTE L/O, KASHIMA COAT
Front WheelNiner Alloy, aluminum clincher, 25mm internal width, 110x15mm, 6-bolt
Rear WheelNiner Alloy, aluminum clincher, 25mm internal width, 148x12mm, 6-bolt
Front TireSCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35
Rear TireSCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
BrakesSRAM LEVEL
Brake LeversSRAM LEVEL
Brake Rotors180/160MM G2CS ROTORS
ChainSRAM SX EAGLE 12SP
Front ShifterN/A
Rear ShifterSRAM SX EAGLE 12SP
Front DerailleurN/A
Rear DerailleurSRAM SX EAGLE 12SP
CassetteSRAM PG 1210 11-50T
CranksetSRAM X1 1K EAGLE DUB, 32T (XS/S - 170MM, M/L/XL - 175MM)
Bottom BracketSRAM DUB PF30
SaddleNINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC
SeatpostNINER ALLOY SEAT POST, 370MM, NINER GRAPHIC
HandlebarNINER FLAT TOP ALLOY, 780MM, NINER GRAPHIC
StemNINER ALLOY STEM, NINER GRAPHIC (XS/S/M- 80MM, L/XL- 90MM)
HeadsetNINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
GripsNINER GRRRIPS L/O NYLON SOFT COMPOUND
Tech Specs
frame fittings and mountsTWO BOTTLE CAGE MOUNTS PLUS ACCESSORY STORAGE MOUNTS ON TOP TUBERear suspension travel100mm
Maximum front suspension120mmfork offset44mm
Shock size165x40MMShock mounting hardware
UPPER – M10 X 54 TRUNNION; LOWER M8 X 25MM
Suggested shock sag25% - moves the O-ring 9.5mm down the shaftSeatpost size30.9
Seat collar size34.9Cable routinginternal, full sleeve guides; Di2 compatible
Front derailleurS3/ Low Direct Mount Front DerailleurHeadset size1.125" X 1.5" Tapered Integrated (Campy Style) Head Tube, Headset Included, Cane Creek Description: IS42/28.6 | IS52/40
Pivot bearing specsSealed Cartridge Enduro Max Black Oxide Bearings - (8x) 26x17x5Chainring compatibilitySINGLE, 38T MAX
Maximum chainring size1x max chain ring size = 38T - Boost Chainring RecommendedQ-Factor168mm
ISCG compatibilitynoBottom bracket typeBSA THREADED
Biocentric compatible?noBrake mount typePost mount
Maximum rear rotor size180mmRear wheel spacing148x12mm
Rear wheel through-axle specM12x1.75Px182LFront wheel axle spacing110x15mm
Front wheel through-axle specMax tire size29 X 2.5
Geometry
Geometry Chart
(A) TT Length (B) Seat Tube Length (C) Rear Center (D) Front Center (E) Wheelbase (F) BB Drop (G) Headtube Length (H) Headtube Angle (I) Seattube Angle (J) Standover Height (K) Reach (L) Stack
100mm Fork Travel
Flip Chip Position High Mode Low Mode - High Mode Low Mode High Mode Low Mode High Mode Low Mode High Mode Low Mode - High Mode Low Mode High Mode Low Mode High Mode Low Mode High Mode Low Mode High Mode Low Mode
XS 561 561 351 429 430 673 671 1100 1101 40 45 90 68.0 67.6 75.0 74.6 688 657 405 401 599 576
SM 577 577 376 429 430 690 688 1117 1118 40 45 95 68.0 67.6 75.0 74.6 698 670 420 416 613 590
MD 599 599 406 429 430 712 712 1139 1140 40 45 100 68.0 67.6 75.0 74.6 727 672 440 436 626 595
LG 626 626 446 429 430 740 740 1167 1169 40 45 110 68.0 67.6 75.0 74.6 727 701 465 461 626 604
XL 661 661 497 429 430 769 776 1196 1204 40 45 120 68.0 67.6 75.0 74.6 778 736 497 493 640 614
120mm Fork Travel
Flip Chip Position High Mode Low Mode - High Mode Low Mode High Mode Low Mode High Mode Low Mode High Mode Low Mode - High Mode Low Mode High Mode Low Mode High Mode Low Mode High Mode Low Mode High Mode Low Mode
XS 561 561 351 430 429 679 679 1107 1108 33 38 90 67.0 66.6 74.0 73.6 674 668 395 391 590 593
SM 577 577 376 430 429 696 695 1124 1125 33 38 95 67.0 66.6 74.0 73.6 684 679 410 406 594 598
MD 599 599 406 430 429 718 717 1146 1147 33 38 100 67.0 66.6 74.0 73.6 687 681 430 426 599 602
LG 626 626 446 430 429 746 746 1176 1177 33 38 110 67.0 66.6 74.0 73.6 715 710 456 451 609 612
XL 661 661 497 430 429 775 775 1204 1205 33 38 120 67.0 66.6 74.0 73.6 750 744 481 476 618 622
Sizing

Frame Size Recommendations by Height

X-SM

5'0"–5'5"
1.53–1.65M

SM

5'3"–5'9"
1.6–1.75M

MED

5'8"–6'0"
1.73–1.83M

LG

5'11"–6'3"
1.8–1.91M

X-LG

6'3"–6'7"
1.91–2.01M

Inseam Sizing

Bike inseam sizing example chart

For riders who fall between sizes, we recommend sizing down for a more maneuverable ride or sizing up for more stability.
