For over a decade, the RIP 9 trail bike has ruled Niner’s off-road lineup. This latest evolution of our
flagship 140mm 29er is ready to tame any trail.
On every Niner Bikes full-suspension frame, Enduro Bearings MAX black oxide bearings are inside every
pivot point. Niner is one of the only brands using these high-grade pivot bearings.
We always say, if you really want to understand Niner, you have to go and ride one. Our bikes make riding
on dirt a better experience! We’d love to get your bum on one of our bikes, because we are certain
you’ll have a great time and you won’t want to give it back.
As often as possible, we partner with key dealers in popular locations around the country to offer
semi-permanent fleets of Niner test bikes. Let’s call them “Niners in residence,” or maybe “Niner pop-up
dealer demos.”
Stay out longer, go a little farther, summit sooner
A quick, 150mm-travel trail bike for picking off mid-week missions and day-long excursions
The best ways we can think of to improve a ride on the dirt is to stay out longer, go a little farther, summit the climb sooner, or just make a ride happen, period. Our new 150mm-travel RIP e9 29er checks all those boxes. It’s a quick, mid-travel trail bike for picking off mid-week missions and day-long excursions alike.
Made with metal
We start with a hand welded 6061 aluminum frame and a one-piece motor mount that unifies the upper and lower pivot locations with the shock mount for exceptional stiffness. Forged seat- and chainstay yokes, rocker arm, hollowed dropouts, plus our signature Enduro Max Black Oxide pivot bearings, make this all-new Niner chassis rock solid.
Powered by Bosch
A Bosch Performance Line CX motor delivers smooth pedal assist with no surprises. Torque sensitive, zero-lag power delivery is predictable in all conditions. And the 625wh battery means you can ride farther without fear of losing the juice.
But above all, Niner ride quality is paramount. Accordingly, the RIP e9 suspension behavior was carefully evaluated during development. The addition of pedal assist reduced the importance of Niner’s signature CVA system and the elaborately tuned, highly efficient pedaling platform it offers.
Superior suspension

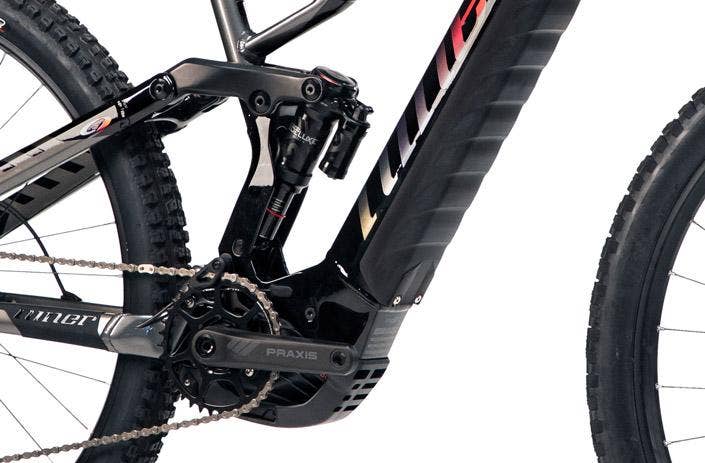

With the freedom to consider a range of proven, well-suited suspension designs, our engineers turned to (and hot-rodded) a Horst-link 4-bar system. Turning over every rock in pursuit of performance, we adjusted the leverage ratio, shock length, stroke, orientation and mounting location to elicit Niner’s signature kinematics. Using a “right side up” trunnion shock mount, bearings in the rocker arm are free to rotate smoothly.. The net result is a remarkably supple, balanced suspension curve that’s equally at home going uphill or down, and ready to take on any trail.
Whether you want to rack up more rides per week, wring out more mileage per ride, or just inject the everyday with a dose of extraordinary, the RIP e9 is ready to roll.
Welded 6061-T6 aluminum
Lightweight, stiff, and strong, with forged yokes and 1-piece alloy motor housing

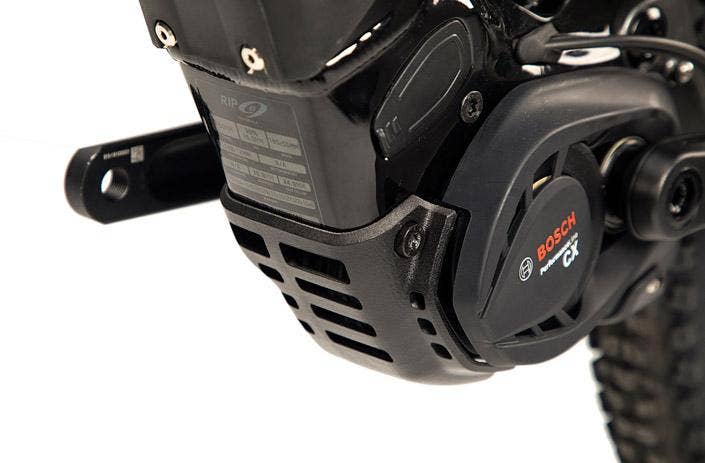

Bosch motor
Bosch Performance Line CX motor delivers smooth, predictable power. Read More
Power Tube 625 battery
625wh external downtube battery offers easy access and robust range of 50mi/80km (avg).
150mm suspension travel
Air-sprung, Niner tuned Horst-link suspension with lockout and “right side up” trunnion mount takes full advantage of bearings in rocker link.
Enduro Max Black Oxide pivot bearings
The smoothest, most durable bearings in the industry. Made for life. Read More
RIP e9 3-STAR SRAM SX EAGLE ndash; USA Specifications
Durable, trail-ready parts round out the USA-spec RIP e9 parts kit. With Rockshox suspension, SRAM drive train and SRAM brakes, it's ready for heavy duty and trouble-free trail rides.
Rockshox ZEB 160mm fork
SRAM Guide RE Brakes and 200 mm rotors
SRAM SX Eagle drivetrain
Available frame sizes
SM, MD, LG
Available colors
Black
MOTOR
BOSCH GEN4 PERFORMANCE LINE CX 20MPH
FRAME
NINER RIP E9 150MM TRAVEL
DISPLAY
BOSCH PURION
FORK
ROCKSHOX ZEB R 160MM
SHOCK
FOX FLOAT DPX2 PERFORMANCE EVOL 3 POSITION 185X55MM TRUNNION
BATTERY
BOSCH POWERTUBE 625WH
FRONT WHEEL
STANS NOTUBES FLOW D, FORMULA CL-811 HUB 110X15MM FRONT
TUBES/SEALANT
TUBES
FRONT TIRE
SCHWALBE EDDY CURRENT EVO SUPER TRAIL TLE ADDIX SOFT 29X2.4
REAR WHEEL
STANS NOTUBES FLOW D, FORMULA ECT-148S HUB 148X12MM REAR
BRAKES
SRAM GUIDE RE
REAR TIRE
SCHWALBE HANS DAMPF EVO SUPER TRAIL TLE ADDIX SOFT 29X2.35
BRAKE ROTORS
SRAM CENTERLINE 200MM CENTERLOCK
BRAKE LEVERS
SRAM GUIDE RE
FRONT SHIFTER
N/A
CHAIN
SRAM SX EAGLE 12SP
FRONT DERAILLEUR
N/A
REAR SHIFTER
SRAM SX EAGLE 12SP
CASSETTE
SRAM PG1210 EAGLE 11-50T
REAR DERAILLEUR
SRAM SX EAGLE 12SP
BOTTOM BRACKET
N/A

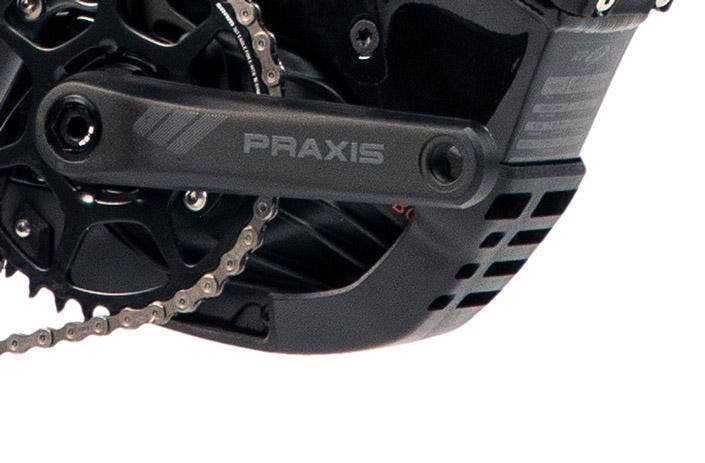

CRANKSET
PRAXIS BOSCH G4 ISIS 165MM WITH SRAM DM EAGLE RING 36T
SEATPOST
KS LEV SI (S-100MM, MD-125MM, LG-150MM)
SADDLE
NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC
STEM
RACE FACE AEFFECT R, 35MM CLAMP
HANDLEBAR
RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
We make every effort to publish accurate build specs, however Niner Bikes reserves the right to make substitutions or changes to bike assembly specification at any time without notice or warning. Product images may not reflect actual specification. Minor variance in color may be visible including fork decal color. Published approximate weights are for size medium (53cm) and may vary by +/- 15% due to manufacturing tolerances.
RIP e9 3-STAR SRAM SX EAGLE ndash; USA Specifications
Durable, trail-ready parts round out the USA-spec RIP e9 parts kit. With Rockshox suspension, SRAM drive train and SRAM brakes, it's ready for heavy duty and trouble-free trail rides.
Rockshox Super Delux Select Plus RT air shock with lockout
SRAM Guide RE Brakes and 200 mm rotors
SRAM SX Eagle drivetrain
Available frame sizes
SM, MD, LG
Available colors
Black
MOTOR
BOSCH GEN4 PERFORMANCE LINE CX 20MPH
FRAME
NINER RIP E9 150MM TRAVEL
DISPLAY
BOSCH PURION
FORK
ROCKSHOX ZEB R 160MM
SHOCK
FOX FLOAT DPX2 PERFORMANCE EVOL 3 POSITION 185X55MM TRUNNION
BATTERY
BOSCH POWERTUBE 625WH
FRONT WHEEL
STANS NOTUBES FLOW D, FORMULA CL-811 HUB 110X15MM FRONT
TUBES/SEALANT
TUBES
FRONT TIRE
SCHWALBE EDDY CURRENT EVO SUPER TRAIL TLE ADDIX SOFT 29X2.4
REAR WHEEL
STANS NOTUBES FLOW D, FORMULA ECT-148S HUB 148X12MM REAR
BRAKES
SRAM GUIDE RE
REAR TIRE
SCHWALBE HANS DAMPF EVO SUPER TRAIL TLE ADDIX SOFT 29X2.35
BRAKE ROTORS
SRAM CENTERLINE 200MM CENTERLOCK
BRAKE LEVERS
SRAM GUIDE RE
FRONT SHIFTER
N/A
CHAIN
SRAM SX EAGLE 12SP
FRONT DERAILLEUR
N/A
REAR SHIFTER
SRAM SX EAGLE 12SP
CASSETTE
SRAM PG1210 EAGLE 11-50T
REAR DERAILLEUR
SRAM SX EAGLE 12SP
BOTTOM BRACKET
N/A
CRANKSET
PRAXIS BOSCH G4 ISIS 165MM WITH SRAM DM EAGLE RING 36T
SEATPOST
KS LEV SI (S-100MM, MD-125MM, LG-150MM)
SADDLE
NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC
STEM
RACE FACE AEFFECT R, 35MM CLAMP
HANDLEBAR
RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
We make every effort to publish accurate build specs, however Niner Bikes reserves the right to make substitutions or changes to bike assembly specification at any time without notice or warning. Product images may not reflect actual specification. Minor variance in color may be visible including fork decal color. Published approximate weights are for size medium (53cm) and may vary by +/- 15% due to manufacturing tolerances.
RIP e9 3-STAR SRAM SX EAGLE - USA Specifications
Durable, trail-ready parts round out the USA-spec RIP e9 parts kit. With Rockshox suspension, SRAM drive train and SRAM brakes, it's ready for heavy duty and trouble-free trail rides.
Rockshox Super Delux Select Plus RT air shock with lockout
We make every effort to publish accurate build specs, however Niner Bikes reserves the right to make substitutions or changes to bike assembly specification at any time without notice or warning. Product images may not reflect actual specification. Minor variance in color may be visible including fork decal color. Published approximate weights are for size medium (53cm) and may vary by +/- 15% due to manufacturing tolerances.
RIP e9 3-STAR SRAM SX EAGLE ndash; EU Specifications
Durable, trail-ready parts round out the USA-spec RIP e9 parts kit. With Rockshox suspension, SRAM drive train and SRAM brakes, it's ready for heavy duty and trouble-free trail rides.
Rockshox ZEB RC 160mm suspension fork
Magura MT5 Brakes and Storm 203 mm rotors
SRAM SX Eagle drivetrain
Available frame sizes
SM, MD, LG
Available colors
Black
MOTOR
BOSCH GEN4 PERFORMANCE LINE CX 20MPH
FRAME
NINER RIP E9 150MM TRAVEL
DISPLAY
BOSCH PURION
FORK
ROCKSHOX ZEB RC 160MM
SHOCK
FOX FLOAT DPX2 PERFORMANCE EVOL 3 POSITION 185X55MM TRUNNION
BATTERY
BOSCH POWERTUBE 625WH
FRONT WHEEL
STANS NOTUBES FLOW D, FORMULA CL-811 HUB 110X15MM FRONT
TUBES/SEALANT
TUBES
FRONT TIRE
SCHWALBE EDDY CURRENT EVO SUPER TRAIL TLE ADDIX SOFT 29X2.4
REAR WHEEL
STANS NOTUBES FLOW D, FORMULA ECT-148S HUB 148X12MM REAR
BRAKES
MAGURA MT5
REAR TIRE
SCHWALBE HANS DAMPF EVO SUPER TRAIL TLE ADDIX SOFT 29X2.35
BRAKE ROTORS
MAGURA STORM 203MM CENTERLOCK
BRAKE LEVERS
MAGURA MT5
FRONT SHIFTER
N/A
CHAIN
SRAM SX EAGLE 12SP
FRONT DERAILLEUR
N/A
REAR SHIFTER
SRAM SX EAGLE 12SP
CASSETTE
SRAM PG1210 EAGLE 11-50T
REAR DERAILLEUR
SRAM SX EAGLE 12SP
BOTTOM BRACKET
N/A
CRANKSET
PRAXIS BOSCH G4 ISIS 165MM WITH SRAM DM EAGLE RING 36T
SEATPOST
KS LEV SI (S-100MM, MD-125MM, LG-150MM)
SADDLE
NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC
STEM
RACE FACE AEFFECT R, 35MM CLAMP
HANDLEBAR
RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
We make every effort to publish accurate build specs, however Niner Bikes reserves the right to make substitutions or changes to bike assembly specification at any time without notice or warning. Product images may not reflect actual specification. Minor variance in color may be visible including fork decal color. Published approximate weights are for size medium (53cm) and may vary by +/- 15% due to manufacturing tolerances.
6002-67382,6002-67384,6003-67385

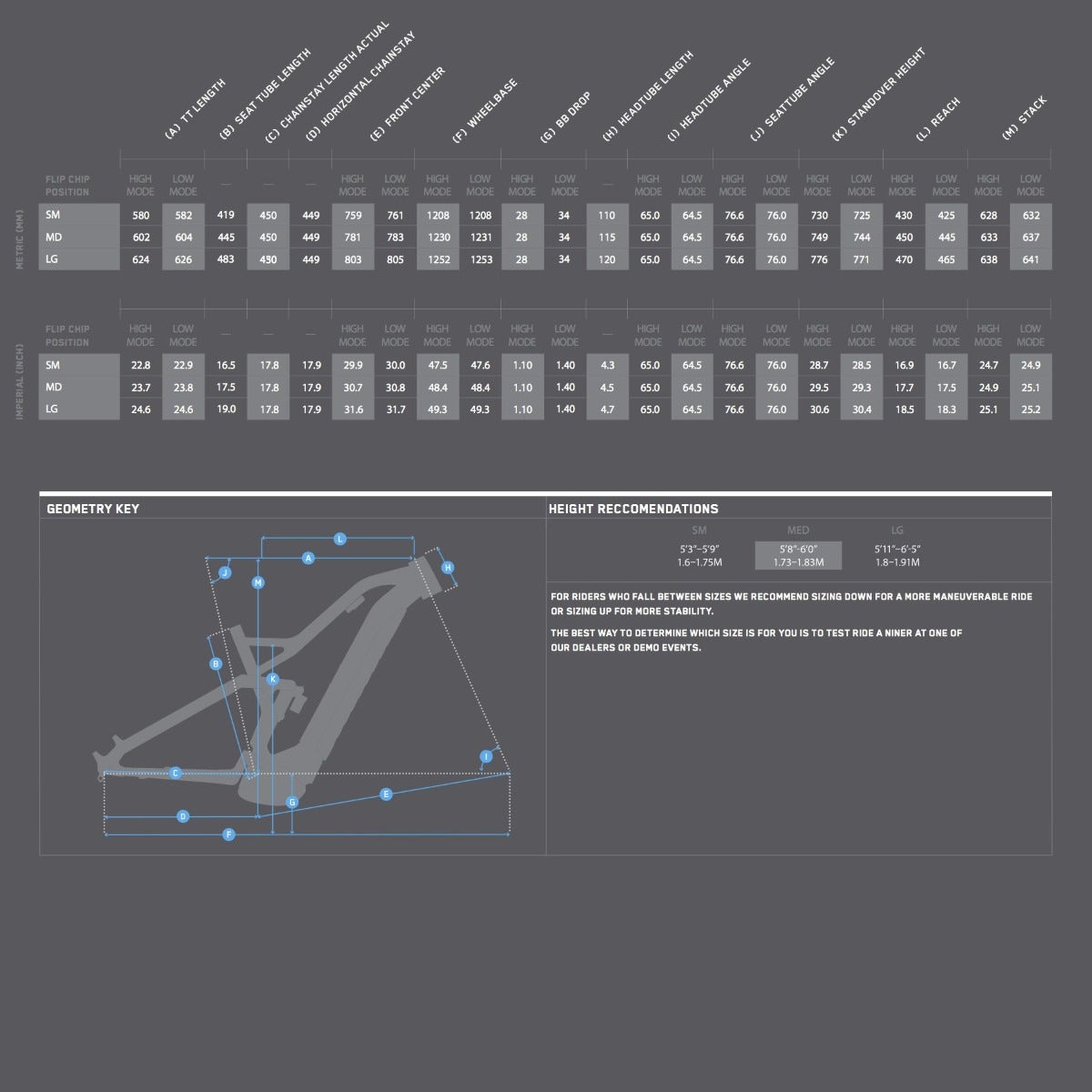

GEOMETRY CHART
TECHNICAL SPECIFICATIONS
FRAME FITTINGS AND MOUNTS
1 BOTTLE CAGE IN FRONT TRIANGLE
REAR SUSPENSION TRAVEL
150MM
MAXIMUM FRONT SUSPENSION
180MM
FORK OFFSET
44MM
SHOCK SIZE
185X55MM TRUNNION
SHOCK MOUNTING HARDWARE
UPPER - M10 X 21MM, LOWER - M8 X P1.25 X 60MM
SUGGESTED SHOCK SAG
30% (16.5MM)
SEATPOST SIZE
30.9
SEAT COLLAR SIZE
34.9
CABLE ROUTING
INTERNAL
FRONT DERAILLEUR
n/a
HEADSET SIZE
SHIS DESCRIPTION ZS44/28.6 | ZS56/40
PIVOT BEARING SPECS
8 X 15x24x5 Enduro BO MAX, 2 X 12x24x6 Enduro BO MAX, 2 X 10x22x6 Enduro BO MAX, 2 X 17x26x10 Enduro Double Row
